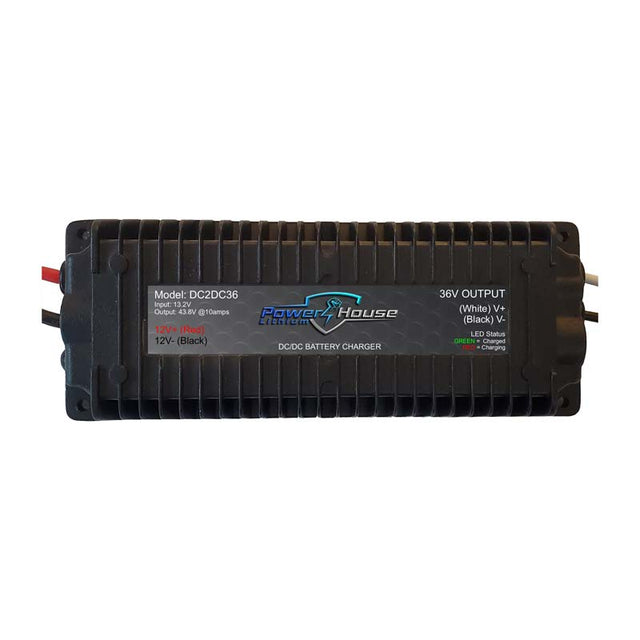

PowerHouse Lithium 36V Run & Gun DC to DC Charger

$199.99
Type of cranking battery you will be using?

OUT OF STOCK UNTIL END OF FEBRUARY



Charge your batteries on and off the water with our PowerHouse Lithium 36V Run & Gun DC to DC Charger. These chargers are great at maximizing your time on the water without having to charge after each outing.

Our Run & Gun Chargers are specially programmed for the type of cranking battery you are running and are voltage triggered so that you maintain 80% or better on your cranking battery.

Add a BCH1235 waterproof charger that is programmed to fully charge all batteries from one single plug in, even when the 12V battery is fully charged. Not needed if you are adding only a 12V or 16V DC charger.

Units run best with charging systems above 40amps. Run & Gun Chargers will automatically wake up a lithium battery so no more having to jump them off.

Lowrance head units require VR16 voltage regulator with Run and Gun Charger (exception: Active Target is ok, but no Lowrance head units.)

Also available in 12V16V and 24V.



Battery Charger Specs

  • 43.8V at 10amps
  • Waterproof
  • 2lbs 2oz.
  • 7.75" x 3.12" x 1.25"

Wiring Instructions

Download the PDF version.
View the wiring diagram.

Please Note: Lithium chargers are programmed to be used with lithium cranking batteries only. Lead acid/gel/AGM chargers are meant to be used with lead acid, gel and AGM cranking batteries only.

Warning: Wiring in reverse polarity will damage the unit and void the warranty so make sure to follow label instructions and the instructions below.

  1. Wire the red input wire to the cranking battery positive (note use a 50amp circuit breaker between the charger and the battery, to be able to turn off the charger as an option.
  2. Use one 60amp circuit breaker per Run and Gun charger.
  3. Wire Black input wire to the negative post on cranking battery.
  4. Wire the white output wire to the battery you want to charge on the positive post. Make sure to install a inline 20amp fuse between the battery and the DC charger on white wire.
  5. Wire the black output wire to ground.
  6. Slight arch is normal when hooking up wires.

Note if you are using a run and gun for a 24v or 36v series setup then hook positive and negative on the same post as your trolling motor is attached. (Ex: three 12V batteries).

How to setup your system

Setting up 12v or 16v Run & Gun by itself
You need to have a minimum of 10 amps going to the starting battery charge lead or leads. Do not exceed 20amps charge on your 12v cranking battery.

Setting up 24v, 36v with or without a 12v or 16v run & gun
Use extra leads from charger to hook to cranking battery to provide 30 amps of charge current to your cranking battery.

Wiring on DC Charger can be shortened to improve efficiency and a 20-amp fuse holder must be used on output (white) wire when installed.

Whatever charger your boat came with will be able to be used for running the dc chargers. When taking out 12v batteries and replacing them with 24v or 36v lithium batteries, you will have extra charging leads that will no longer be needed to charge the trolling motor batteries. Use these leads to get the proper amount of amperage to the cranking battery to charge both the cranking and turn on the DC chargers to charge the batteries they are hooked to.

We also offer a 12V 35 amp waterproof charger programmed to work with the run and gun system.

Note: If you have to extend the wiring to get to both batteries, then you will have to do that from the white wire on the output side. Always try to make red and black input wires as short as possible so units run cooler.

Versatile

Charge your batteries on and off the water.

Waterproof

These chargers are waterproof.
