PHL  |  SKU: PHCB12105

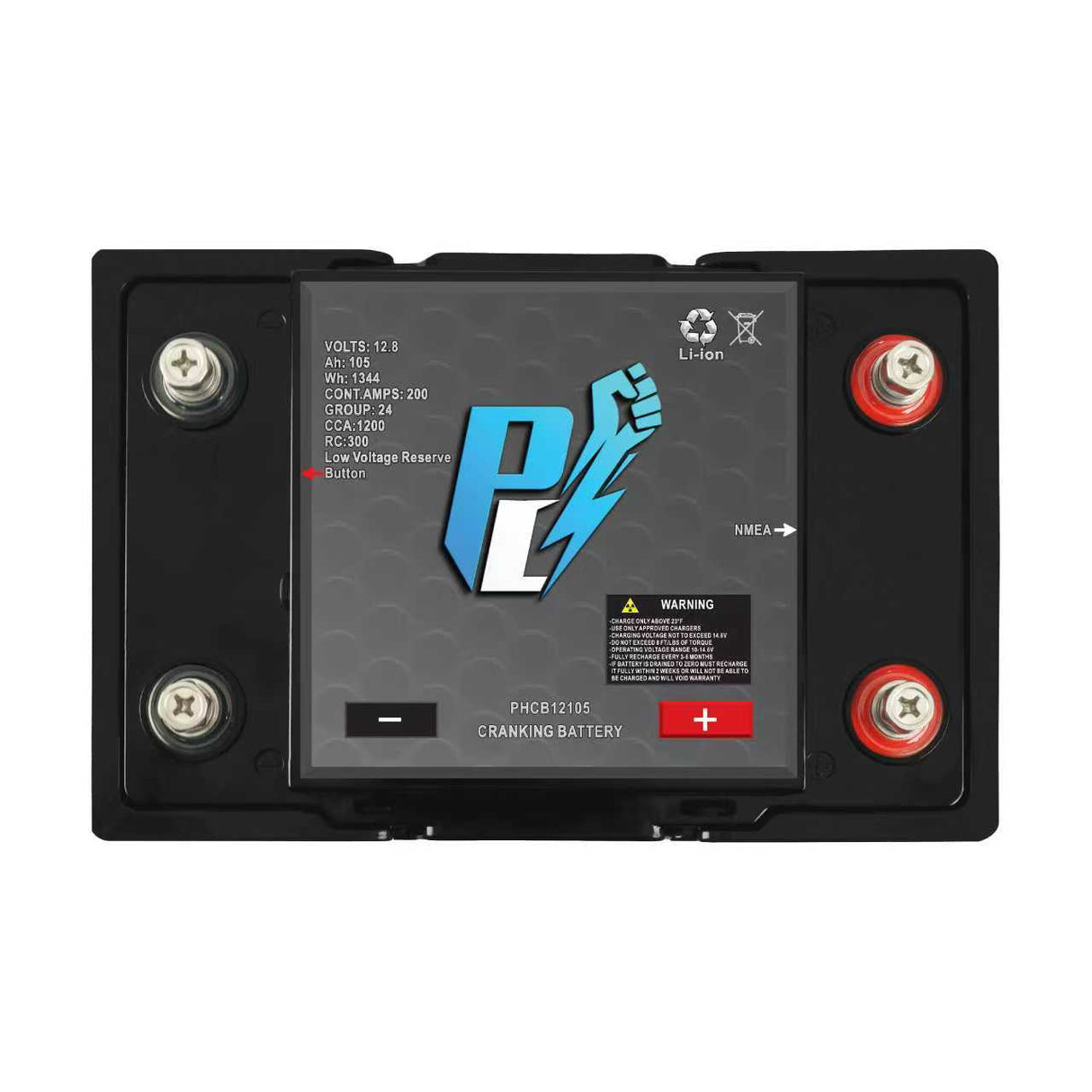

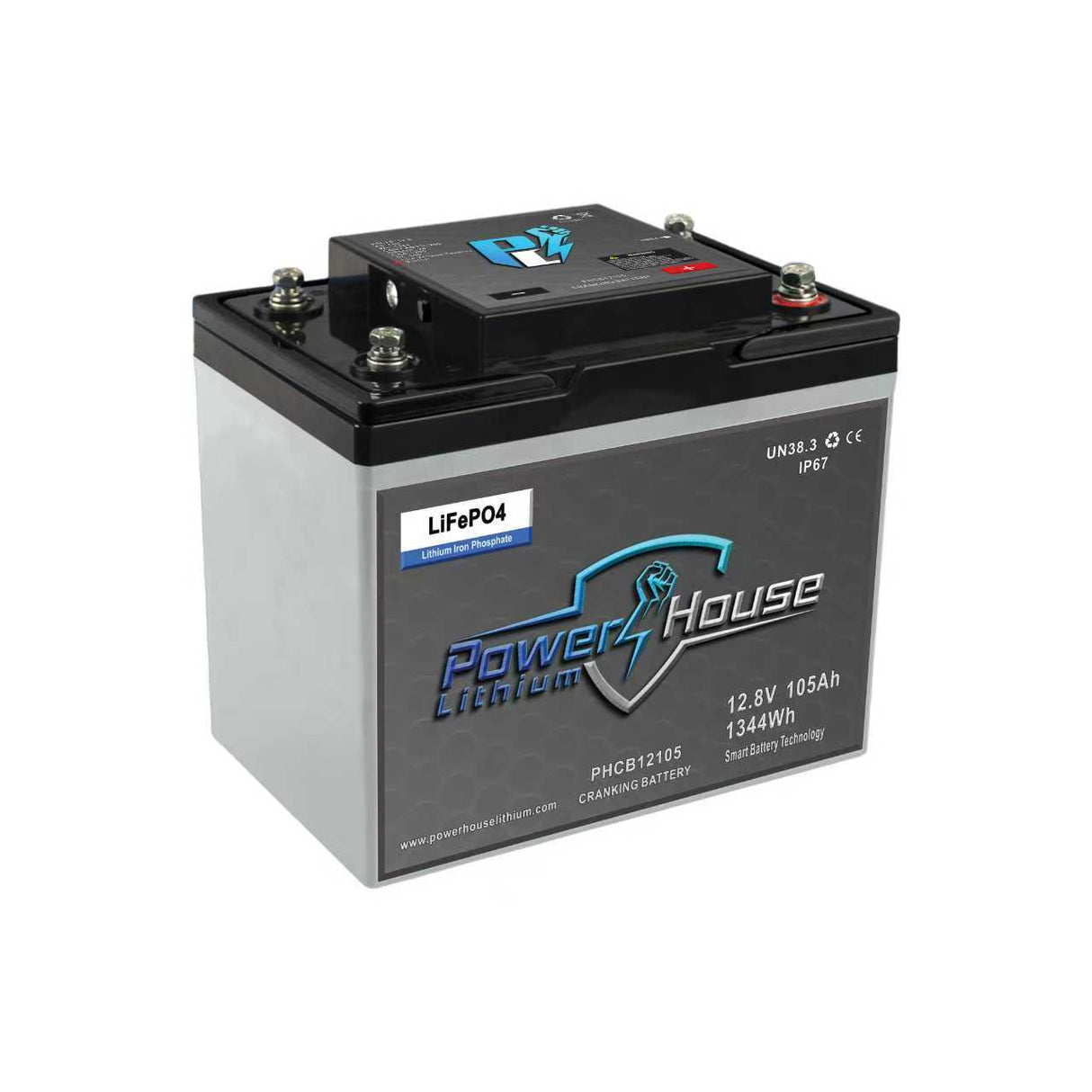

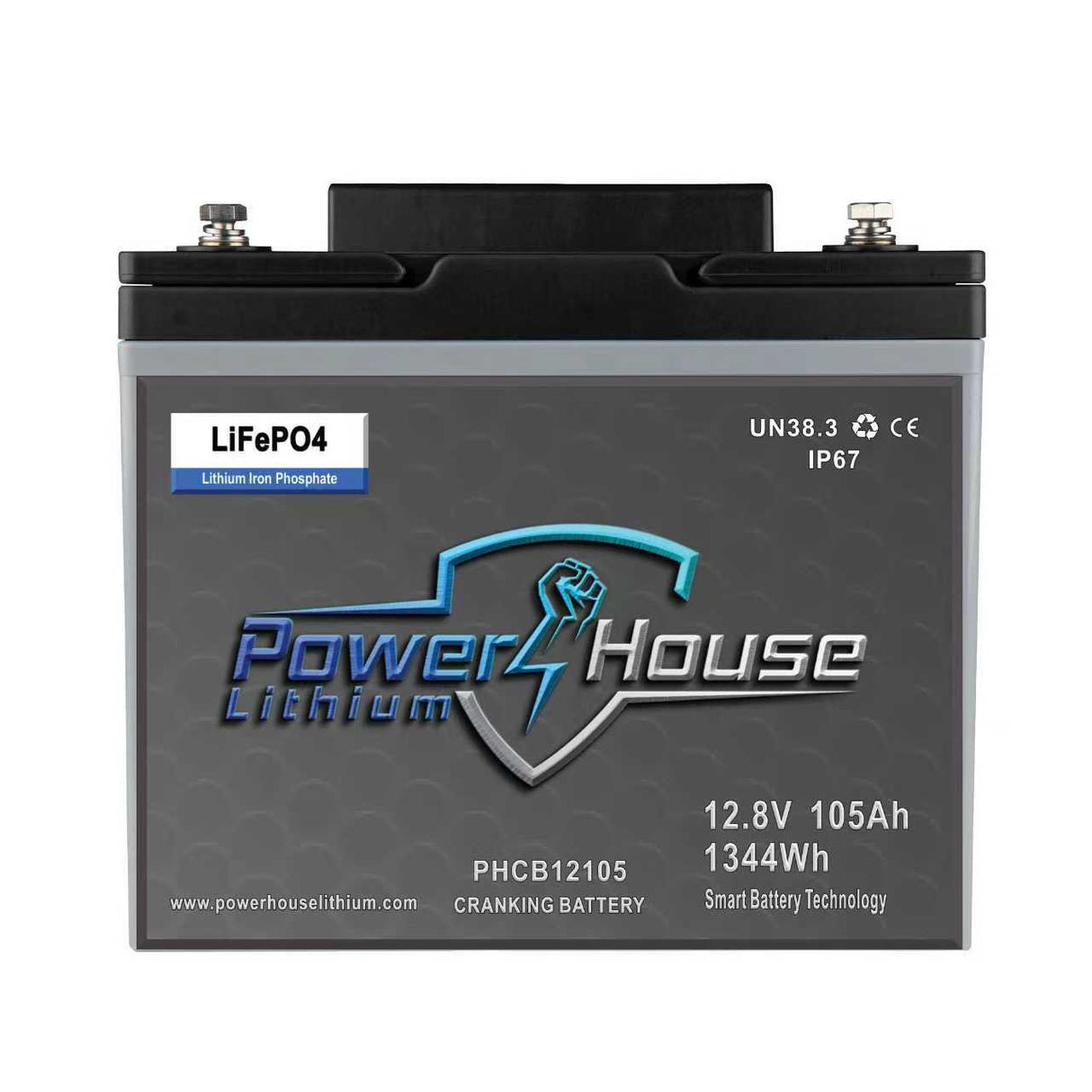

PowerHouse Lithium 12V 105Ah Cranking Battery with Emergency Start

$999.99

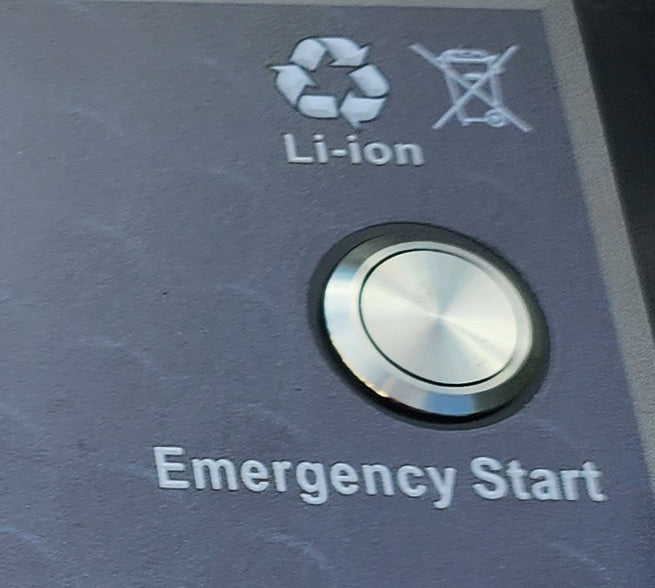

First in the industry emergency jump start button! If your cranking battery ever dies on the water, simply press and hold the emergency jump start button that is easily accessible on the top of the battery for 3 seconds to activate the battery reserve! Never be stuck on the water again with a dead battery!

Industry leading Smart Battery Technology - Blue Tooth enabled will constantly monitor your battery and make changes to give you optimal performance all day. Keep up with this from the convenience of your phone.

BMS equipped with all voltage protections, and temperature protections.

The 12V 105Ah cranking battery was engineered to keep you out on the water longer and ensure you still have enough juice to fire your boat up to get home!

Requires Group 31 tray.

Additional Specs

  • 1200 CCA @50ms
  • 900 CCA @ 1 sec.
  • 800 CCA for 8 sec.
  • 350 CCA for 30 sec.
  • IP67 Water Proof
  • RC: 300 minutes

Amp Draw Specs

12V versus 16V efficiency.

Now run your equipment 20% longer and on a separate clean power system, and receive better clarity and signal returns with 16V systems. Switch with no effects on warranty issues. as all units listed operate at above 16 volts. When setting up a system add the the total number of amps needed and divide by the AH of the battery rating. Remember to add  20% more AH rating then needed for a 10 hour day or longer so that same battery will be big enough for load after 4 years of service.

* Note less amp draw from units on 16V mean less heat for units to absorb making units run cooler.





All Battery Models & Trays

VEX
12V 6Ah
12V 8Ah
12V 12Ah

Shuttle
12V 30Ah
16V 18Ah

GROUP 20
12V 60Ah
16V 48Ah

GROUP 24
16V 60Ah

GROUP 31
12V 100Ah
12V 105Ah
12V 110Ah
16V 80Ah
24V 60Ah
36V 40Ah

GROUP 5D
16V 100Ah
16V 140Ah
36V 60Ah

Emergency Start

Never be stuck on the water again with a dead battery.

Mercury Approved

Exceeds Mercury requirements for a lithium cranking battery.

Specifications

  • Warranty
    15 Years
  • Battery Management System
    Yes
  • Bluetooth
    Yes
  • Dimensions in Inches (LxWxH)
    13 x 6.77 x 8.46
  • Weight
    27.4 lb
  • Case Size
    31
  • Terminal Bolt Size
    M8
  • Cell Type
    Cylindrical
  • Watt Hours
    1,260
  • Reserve Capacity
    105Ah
  • Voltage Range
    10V to 14.6V
  • Nominal Voltage
    12.8V
  • Maximum Charge Current
    200A
  • Pack Charge Cutoff
    14.6V
  • Pack Discharge Cutoff
    10V
  • Charge Temperature Range
    23°F~140°F
  • Continuous Discharge
    200A
  • Peak Discharge
    1200CCA
  • Discharge Temperature Range
    -4°F~149°F

Payment & Security

Payment methods

  • American Express
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Do I need a specific charger for my 12V battery?

Technically you don't need a specific charger if your current charger has the capability of lithium charging. However, we have different options for charging that allow you to retrofit your current onboard charging system to charge your dedicated electronics battery, for example the run and gun charging system.

Please feel free to reach out to support if you have specific questions.

What size wiring is needed to carry loads?

We suggest 10AWG to run form batteries to Perko switch and to units. Our battery install kit comes with four 6 AWG battery cables to go to Perko.

If you choose to run main power to a separate fuse box then you only need 14AWG as 16V system carries the load much better than 12v and will not drop voltage, especially since you are running each device on a separate circuit to the fuse box. The fuse box eliminates the factory fuse holders that are impossible to get to if a problem occurs on the water. But system will accepted other wiring harness from other suppliers.

  • BMS Protection

    Our batteries feature a state-of-the-art battery management system with cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.

  • Bluetooth Technology

    Our free Bluetooth app provides instant access to the battery state of charge (SOC), voltage, cycles and a complete log of any potential issues. All from the convenience of your phone!

  • All Major Brands

    Our batteries are fully compatible with Hummingbird, Lowrance and Garmin.
